2.5" Trumpet

Options:

Usage: Provides a controlled cable exit from a 2.5-inch fiber tray system while maintaining a 2-inch minimum cable bend radius.

Enables smooth transitions from straight channels and compatible transitional fittings.

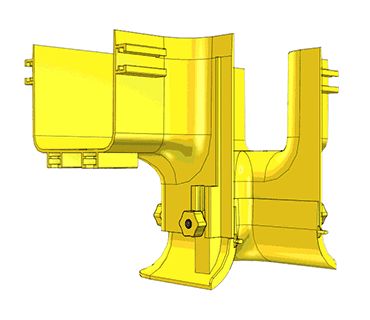

This 2.5-Inch Trumpet Spillout is designed to provide a smooth, protected exit point for fiber optic cables from 2.5-inch straight channel sections and compatible transitional fittings. Engineered to maintain a 2-inch minimum cable bend radius, it helps prevent cable stress, micro-bending, and signal degradation while supporting safe and organized cable routing. The trumpet's flared, curved design guides cables through a gradual directional change, reducing the risk of damage as they exit the fiber tray system. Constructed from lightweight, flame-retardant UL 94 V-0 rated PVC, the spillout delivers reliable performance and long-term durability in data centers, telecommunications rooms, and other network infrastructure environments. It features a tool-free installation design and includes a snap-on cover, and four sets of plastic T-bolts and hex nuts for secure attachment. Complies with UL 2024 and UL 94 V-0 standards.

Product Specifications

Material	Lightweight, Flame Retardant PVC (V-0 Rated)
Color	Yellow
Dimensions (L x W x H)	5.1 In. x 5.1 In. x 2.4 In.
Weight	0.1 lbs.
Required Hardware	None
Compliance & Standards	UL2024 & UL94-V0
Selling Unit	1 Piece
